EMX-BYT3

EMX-BYT3

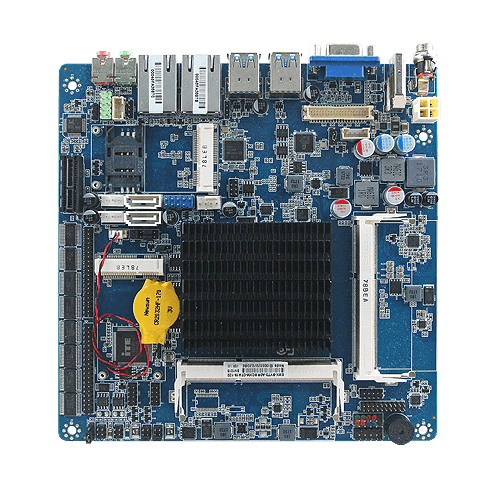

Intel® Celeron® J1900 Processor Thin Mini ITX Motherboard

Category: Industrial Motherboards Tag: aValue

Description

Description

+

Features

Onboard Intel® Celeron® J1900 Processor (2M Cache, Up to 2.42 GHz)

2 x 204-pin DDR3L 1333 MHz SO-DIMM supports up to 8GB

VGA, HDMI, Dual channel 18/24-bits LVDS

2 x Intel® i211AT Gigabit Ethernet

Realtek ALC888S & ALC897 (co-lay) Audio Codec

1 x Full size Mini PCI-e soclet supported mSATA only (SATAII and mSATA switchable through jumper), 1 x Full size Mini PCI-e support WiFi or communication module or 1 x PCI-e x 1 slot switchable by switch IC

2 x SATA II, 2 x SATA Power, 2 x USB 2.0, 4 x USB 3.0

6 x RS232, 2 x RS232/422/485, 16-bit GPIO

Mic-in, Line-out, 1 S/PIDF, Optional Infineon SLB9665 TPM 2.0

Onboard eMMC (Optional 32GB)

DC in +12~24V

+

Spec

System Information
Processor	Intel® Celeron® J1900 Processor (2M Cache, Up to 2.42 GHz)
System Memory	2 x 204-pin DDR3L 1333 MHz SO-DIMM supports up to 8GB
I/O Chipset	EC iTE IT8528E
BIOS Information	AMI 64/128Mbit SPI BIOS
Watchdog Timer	H/W Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step
H/W Status Monitor	Monitoring System Temperature and Voltage with Auto Throttling Control

Expansion
Expansion	1 x Mini PCI-e Supports mSATA (Switch Through Jumper) 1 x Mini PCI-e 1 x SIM card slot

I/O
USB Port	2 x USB 2.0 4 x USB 3.0
COM Port	6 x RS232 2 x RS232/422/485
SATA	2 x SATA Power 2 x SATA II
DIO	1 x 16-bit GPIO
Other	1 x S/PDIF

Display
Graphic Chipset	Intel® Atom™/ Celeron® SoC integrated Graphics
Spec. & Resolution	VGA: 2560 x 1600 @ 60Hz HDMI: 1920 x 1200 @ 60Hz LVDS: 1920 x 1080 @ 60Hz
Multiple Display	Dual Display
LVDS	Dual channel 18/24-bits LVDS 1920 x 1080 Chrontel. CH7511B eDP to LVDS Converter

Audio
Audio Codec	Realtek ALC888S & ALC897 (co-lay)
Audio Interface	Mic-in, Line-out
Audio Amplifier	2 x Stereo Class-D 3W Audio Amplifier

Ethernet
LAN Chipset	2 x Intel I211AT Gigabit Ethernet
Ethernet Interface	10/100/1000 Base-Tx GbE compatible
LAN Port	2 x RJ45

Mechanical & Environmental
Operating Temperature	0 ~ 60°C (32 ~ 140°F)
Storage Temperature	-40 ~ 75°C (-40 ~ 167°F)
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
Weight	0.88lbs (0.4Kgs)
Power Requirement	DC in +12~24V
Power Mode	AT/ATX
Dimension (L x W)	6.69” x 6.69” (170mm x 170mm)

Ordering Information
Ordering Information	EMX-BYT3-B1R Intel® Celeron® J1900 Processor Thin Mini ITX Motherboard

+

Download

No.	Release Date	Model	Description	Download
1	2018-12-10	EMX-BYT3	(MXT3T009)EMX-BYT3(D) BIOS 1.10 CS:5B5FH,P/N:E1512MXT301R
2	2018-02-22	EMX-BYT3	(MXT3T006)EMX-BYT3(D) BIOS 1.00 CS:0CBEH,P/N:E1512MXT300R.
