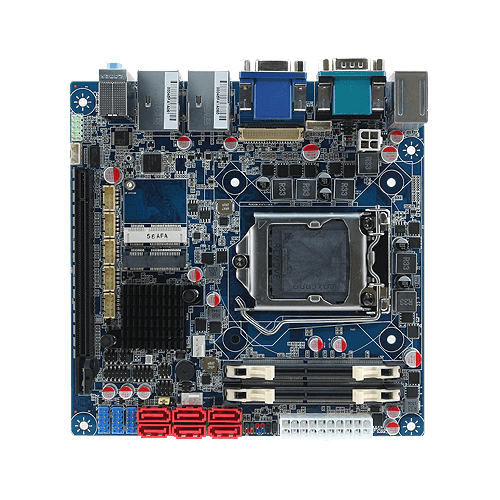

EMX-Q170KP

Intel® 6/7th Generation Core™ Processor Mini ITX Motherboard with Intel® Q170 Chipset

Category: Industrial Motherboards Tag: aValue

Description

Description

+

Features

Intel® 6/7th Generation Core™ Processor (Max. TDP at 95W)

Intel® Q170 Chipset

2 x 260-pin DDR4 2133MHz SO-DIMM supports up to 32GB

1 x Intel® I219LM Gigabit Ethernet PHY

1 x Intel® I211AT PCI-e Gigabit Ethernet

Realtek ALC888S & ALC897 (co-lay) Audio Codec

VGA, HDMI, DP++, Dual channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)

5 x SATA III, 1 x SATA III or 1 x mSATA III switch by BIOS

1 x PCI-e x16

1 x Full Size Mini-PCI-e with mSATA Support (SATA III)

1 x Half Size Mini PCI-e

4 x USB 3.0, 8 x USB 2.0

1 x PS/2 Keyboard or Mouse with Dual deck USB 2.0

5 x RS232, 1 x RS232/422/485

Line-in, Mic-in, Line-out

8-bits GPIO

Support RAID 0, 1, 5, 10

Onboard Infineon SLB9665 support TPM 2.0

AT/ATX Power

+

Spec

System Information
Processor	Intel® LGA1151 Socket Supports 6/7th Generation Core™ i7/ i5/ i3 & Pentium®/Celeron® Processors (Max. TDP at 95W)
Platform Controller Hub	Intel® Q170 Chipset
System Memory	2 x 260-pin DDR4 2133MHz SO-DIMM supports up to 32GB
I/O Chipset	Nuvoton® NCT6106D
BIOS Information	AMI uEFI BIOS, 128Mbit SPI Flash ROM
Watchdog Timer	H/W Reset, 5~255 seconds/5~255 minutes
H/W Status Monitor	CPU temperature monitoring Voltages monitoring CPU fan speed control
TPM	Onboard Infineon SLB9665 support TPM 2.0
Board	Mini ITX

Expansion
Expansion	1 x PCI-e x16 1 x Full Size Mini PCI-e Supports mSATA (by auto switch IC) 1 x Half Size Mini PCI-e

I/O
USB Port	8 x USB 2.0 4 x USB 3.0
COM Port	5 x RS232 1 x RS232/422/485
SATA	5 x SATA III, 1 x SATA III or 1 x mSATA III switch by BIOS selection
DIO	1 x 8-bit GPIO
MIO	1 x PS/2 Keyboard or 1 x PS/2 Mouse
Other	Onboard Infineon SLB9665 support TPM 2.0

Display
Graphic Chipset	Intel® 7th Generation CPU integrated
Spec. & Resolution	VGA: 2048 x 1536 @ 50Hz HDMI: 4096 x 2160 @ 24Hz DP: 4096 x 2304 @ 60Hz
Multiple Display	Triple Display
LVDS	Dual channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)

Audio
Audio Codec	Realtek ALC888S & ALC897 (co-lay) HD Audio Decoding Controller
Audio Interface	Mic-in, Line-out, Line-in
Audio Amplifier	6W Amplifier

Ethernet
LAN Chipset	1 x Intel® I219LM Gigabit Ethernet PHY, 1 x Intel® I211AT PCI-e Gigabit Ethernet
LAN Port	2 x RJ-45

Mechanical & Environmental
Operating Temperature	0~60°C (32~140°F)
Storage Temperature	-40~ 75°C
Operating Humidity	40°C @ 95% relative humidity, non-condensing
Weight	0.40 kg
Power Requirement	+12V/+5V/5VSB/+3.3V/-12V
ACPI	Single power ATX Support S0, S3, S4, S5
Power Mode	AT/ATX
Dimension (L x W)	6.69″ x 6.69″ (170mm x 170mm)

Ordering Information
Ordering Information	EMX-Q170KP-B1R Intel® 6/7th Generation CoreTM i7/ i5/ i3 Processor Mini ITX Motherboard with Intel® Q170 Chipset

+

Download

No.	Release Date	Model	Description	Download
1	2021-08-05	EMX-Q170KP	(M17K-R13) EMX-Q170KP BIOS 1.30 CS:B94EH,P/N:E1512M17K03R
2	2018-08-15	EMX-Q170KP	(M17K-R12) EMX-Q170KP BIOS 1.20 CS:A0E2H,P/N:E1512M17K02R
3	2017-07-11	EMX-Q170KP	(M17K-R11) EMX-Q170KP BIOS 1.10 CS:E6A4H,P/N:E1512M17K01R
4	2017-06-13	EMX-Q170KP	(M17K-R10) EMX-Q170KP BIOS 1.00 CS:931AH,P/N:E1512M17K00R
