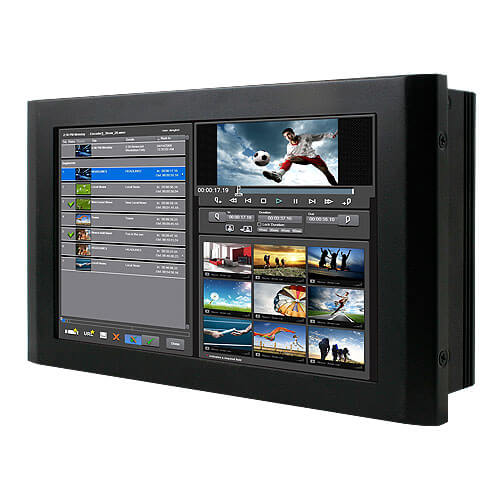

FPC-08W29

Features

Spec

System Information
Processor	Intel® Atom™ E3845 4-Core 1.91GHz processor
Platform Controller Hub	Intel® Valleyview SoC
System Memory	1 x 204-Pin DDR3L 1333MHz SO-DIMMup to 8 GB
I/O Chipset	Nuvoton W83627DHG-P
Watchdog Timer	H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step
H/W Status Monitor	Monitoring CPU & System Temperature and Voltage
SBC	ECM-BYT

Expansion
Expansion	1 x Mini PCIe Supports mSATA

Storage
Storage	1 x CompactFlash Type I/II Socket

Display
Graphic Chipset	Intel® Valleyview SoC integrated Graphics Supports dual display
Spec. & Resolution	VGA:Max. resolution 2560×1080@ 60Hz HDMI:Max. resolution 1920×1200@ 60Hz

Certifications
Certification Information	CE / FCC Class B

Power Requirement
DC Input	+12V ~ +26V
DC Input Connector	Lockable DC Jack
ACPI	Single Power ATX Support S0, S1, S3, S4, S5 ACPI 3.0 Compliant
Power Mode	AT/ATX (ATX is default setting)
Adapter	Input: 100 ~ 240Vdc/ 50 ~ 60Hz; Output: 60W Adapter (12V @ 5A Adapter)

Mechanical & Environmental
Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature	-10°C ~ 50°C (14°F ~ 122°F)
Operating Humidity	0% ~ 90% Relative Humidity, Non-condensing
Dimension (W x L x H)	225 x 129 x 43.4 mm
Weight	1.27Kgs
Vibration Test	With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Test	With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms
System Fan	Fanless
Construction – Front	Metal
Construction – Rear	Aluminum + Metal

Software Support
OS Information	Win 7 Win 8 Linux

Ordering Information

FPC-08W29-00300-3R
Intel Atom SoC E3845 1.91GHz/2G DDR3L / 2xGLAN / 2xCOM / Audio / 12~26V in / 12V Adapter

ACC-FPC-WALLMT-07R
Wall Mount Bracket Kit for FPC-08W2x

ACC-FPC-08WPM-02R
Panel Mount Kit for FPC-08W2x Series

ACC-ARM-D22R
VESA STAND, 75×75 & 100×100 mm

ACC-CF-XX CompactFlash Card Series
(xx=Capacity, Capacity Option: 128, 256, 512MB, 1, 2, 4, 8GB)
