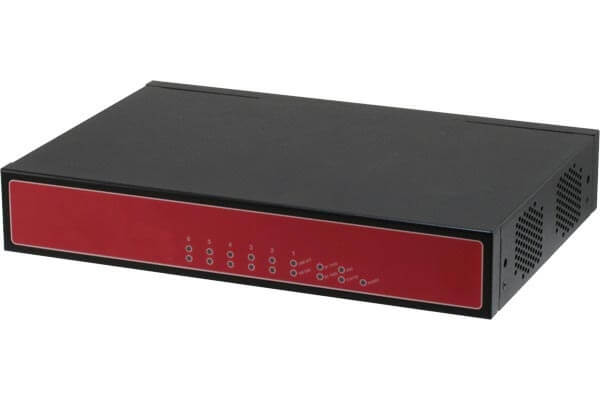

FWS-2350

Desktop 6 LAN Ports Network Appliance with Intel® Atom™ C2558/C2358 Processor SoC with Intel® QAT Support

Description

Overview

Featuring Intel® Atom™ C2358 Processor SoC with Intel® QAT support, the FWS-2350 is a Network Appliance that supports six LAN ports (LAN bypass function for 2 pairs supported), 240-pin ECC DDR3 DIMM or non-ECC SDRAM of up to 16GB, one MiniCard socket, two USB2.0 ports, and one RJ-45 for console.

Applications

  • Firewall
  • IDP/IPS
  • Load Balancing
  • Network Access Control
  • Bandwidth Management
  • Web Filter
  • Anti-Spam/Virus

Features

  • Onboard Intel® Atom™ C2358/C2558 Processor SoC
  • 240-pin DDR3 DIMM up to 16 GB ECC or non-ECC SDRAM
  • Built-in Gigabit Ethernet x 6
  • Supports QuickAssist Crypto Acceleration
  • System Cooling Fan x 1
  • Supports 2 Pairs LAN Bypass Function
  • Compact Desktop Design
  • Built-in Intel® i211AT LAN and Intel® SoC Integrated i354 with Marvell 88E1543 PHY

Specifications [FWS-2350]

SYSTEM
FORM FACTOR Desktop 6-Port Network Appliance
PROCESSOR Intel® Atom™ C2358 1.7 GHz (Dual Core) Intel® Atom™ C2558 2.4 GHz (Quad Core)
CHIPSET
SYSTEM MEMORY 240-pin DDR3 1333MHz ECC or non-ECC SDDIMM up to 16GB, C2358 single channel, C2558 dual-channel
NETWORK
ETHERNET Intel® i211, Gigabit Ethernet x 2 (Optional additional Intel® i211, Gigabit Ethernet x 2), Intel® SoC Integrated i354 with Marvell 88E1543 PHY x 1
BYPASS Supports up to 2 pairs bypass function
DISPLAY
GRAPHICS CONTROLLER
CONNECTOR
STORAGE
HDD Internal 2.5” SATA HDD Bay x 1
CF/CFAST/MSATA CF socket x 1 (Optional CFast™ socket x 1)
INTERNAL/ EXPANSION INTERFACE
PCIE SLOT
MINI-PCIE SLOT Mini-Card slot with SIM socket x 1 (Full size) (Optional Mini-Card slot up to 2)
KB MOUSE Pin-header
USB USB 2.0 x 2
MISCELLANEOUS
RTC Internal RTC
WATCHDOG TIMER 1~255 steps by software programmable
SOFTWARE BUTTON GPIO Programmable push button x 1
TPM Optional TPM v1.2/v2.0
GPIO Reserved internal GPIO Pin header x 1
FAN System Fan x 1
MTBF (HOURS) 86286
COLOR Black
PHYSICAL & ENVIRONMENTAL SPEC
POWER REQUIREMENT 12V DC power in connector/ 60W Power adapter x 1 4-pin DC power out connector for HDD x 1
OPERATING TEMPERATURE 32°F ~ 104°F (0°C ~ 40°C)
STORAGE TEMPERATURE -4°F ~ 140°F (-20°C ~ 60°C)
OPERATING HUMIDITY 10%~80% relative humidity, non-condensing
STORAGE HUMIDITY 10%~80% @40°C, non-condensing
VIBRATION 0.5 Grms/ 5 ~ 500Hz/ operation (2.5” Hard Disk Drive)
1.5 Grms/ 5 ~ 500Hz/ non-operation
SHOCK 10 G peak acceleration (11 m sec. duration), operation
20 G peak acceleration (11 m sec. duration), non-operation
DIMENSION (W X D X H) 10.24” x 7.01” x 1.73” (260mm x 178mm x 44mm)
I/O
FRONT PANEL Power LED x 1
Status LED x 1
HDD Active LED x 1
Bypass LED x 2 (Optional)
LAN LED x 12 (Supports up to LAN LED x 16)
REAR PANEL 12V DC Power Input x 1
Power Button x 1
USB 2.0 x 2
RJ-45 LAN x 6 (Supports up to RJ-45 LAN x 8)
RJ-45 Console x 1
Software Programmable Button x 1

Ordering Information [FWS-2350]

PART NUMBER FWS-2350E6-A10-A11-00 FWS-2350E6-A10-A11-01
CPU Intel® Atom™ C2358 Intel® Atom™ C2558
MEMORY Single channel, DDR3 DIMM x 1 Dual channel, DDR3 DIMM x 2
SYSTEM FAN 1 1
BYPASS 2 pairs 2 pairs
MINI-CARD SOCKET 1 1
STORAGE 2.5″ HDD Bay x 1
CompactFlash™ Socket x 1
2.5” HDD Bay x 1
CompactFlash™ Socket x 1
DISPLAY
LAN GbE x 6 GbE x 6
USB USB 2.0 x 2 USB 2.0 x 2
CONSOLE RJ-45 x 1 RJ-45 x 1
MOUNTING Desktop Desktop
POWER DC DC

Downloads [FWS-2350]

Packing List

  • Power Adapter
  • Console Cable
  • SATA Cable
  • SATA Power Cable
  • FWS-2350

Optional Accessories

9761220030 Ear Bracket kit
1702031803 Power Cord, 3P-250V/10A, 180D, 1.8M, VDE, YP12/YC-12
1702031802 Power Cord, 3P-250V/10A, 180D, 1.8M, USA, YP12/YC-12
170203180B Power Cord, 3P-250V/10A, 180D, 1.8M, China, YP-03/YC-12
170203180E Power Cord, 3P-125V/7A, 1.8M, PSE, YP12/YC-12
9761EMPV00 VGA Module Kit
