Overview

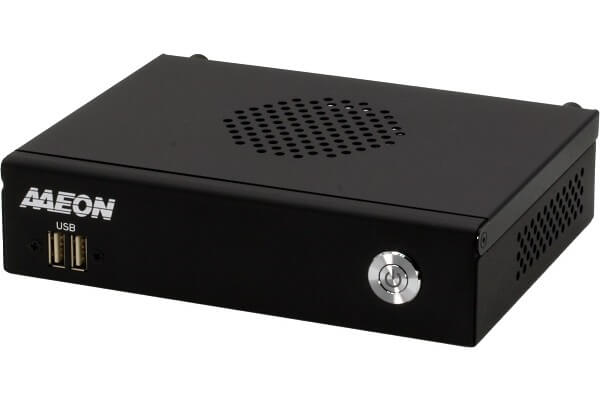

3.5″ SubCompact Board System with 8th Generation Intel® Core™ i7/i5/i3/Celeron® Processor SoC

Features

SYSTEM
FORM FACTOR	3.5″ SubCompact Board System
CPU	Intel® 8th Generation Core™ i7/i5/i3/Celeron SoC i7-8665UE (4C, 1.7GHz, up to 4.4GHz) i5-8365UE (4C, 1.6GHz, up to 4.1GHz) i3-8145UE (2C, 2.2GHz, up to 3.9GHz) 4305UE (2C, 2GHz)
CPU FREQUENCY	Up to 4.4GHz
CHIPSET	8th Generation Intel® Processor SoC
MEMORY TYPE	DDR4 2400 MHz SODIMM x 2 (Dual Channel, Non-ECC)
MAX. MEMORY CAPACITY	Up to 64GB
BIOS	AMI UEFI
WAKE ON LAN	Yes
WATCHDOG TIMER	255 Levels
POWER REQUIREMENT	+9 ~ 36V (Optional: +12V)
POWER SUPPLY TYPE	ATX
POWER CONSUMPTION (TYPICAL)	Intel® i7-8665UE, DDR4 2400 MHz 16GB, 2.8A@ +12V
DIMENSION (L X W)	5.75″ x 4″ (146mm x 101.7mm)
OPERATING TEMPERATURE	32°F ~ 122°F (0°C ~ 50°C)
STORAGE TEMPERATURE	-40°F ~ 176°F (-40°C ~ 85°C)
OPERATING HUMIDITY	0% ~ 90% relative humidity, non-condensing
MTBF (HOURS)	354194
CERTIFICATION	CE/FCC
DISPLAY
VGA/LCD CONTROLLER	Intel® 8th Generation Core™ i7/i5/i3/Celeron SoC
VIDEO OUTPUT	VGA x 1, HDMI 2.0 x 1
BACKLIGHT INVERTER SUPPLY	—
I/O
ETHERNET	Intel® i210/i211 & i219, 10/100/1000Base, RJ 45 x2
AUDIO	High Definition Audio Interface (Optional)
USB PORT	USB 3.2 Gen 2 x 4/2.0 x 2 (Up to Gen2)
SERIAL PORT	RS-232/422/485 x 2
PARALLEL PORT	—
HDD INTERFACE	SATA 3.0 x 1 SATA power connector x 1 (+5V)
FDD INTERFACE	—
SSD	Full size mSATA/mPCIe x 1 with NANO-SIM (mSATA as default, select by BIOS) M.2 2280 B key (PCI-e as default, SATA select by BIOS)
EXPANSION SLOT	M.2 2230 E key x 1 (For WIFI/BT, PCIe/USB signal only) SMBUS/I2C/LPC/eSPI x 1
DIO	—
SIM	x 1( NANO-SIM)
TPM	—
TOUCH	—

PART NUMBER	GENESYS-WHU6-A10-0001	GENESYS-WHU6-A10-0002	GENESYS-WHU6-A10-0003	GENESYS-WHU6-A10-0004
CPU	i3-8145UE	i5-8365UE	i7-8665UE	4305UE
FAN/FANLESS	Cooler	Cooler	Cooler	Cooler
DISPLAY	VGA x 1 HDMI x 1	VGA x 1 HDMI x 1	VGA x 1 HDMI x 1	VGA x 1 HDMI x 1
STORAGE	mSATA/mPCIe x 1 (Full size) M.2 B key 2280 x 1	mSATA/mPCIe x 1 (Full size) M.2 B key 2280 x 1	mSATA/mPCIe x 1 (Full size) M.2 B key 2280 x 1	mSATA/mPCIe x 1 (Full size) M.2 B key 2280 x 1
LAN	GbE x 2	GbE x 2	GbE x 2	GbE x 2
USB	USB 3.2 Gen 2 x 4 USB 2.0 x 2	USB 3.2 Gen 2 x 4 USB 2.0 x 2	USB 3.2 Gen 2 x 4 USB 2.0 x 2	USB 3.2 Gen 2 x 4 USB 2.0 x 2
RS-232	—	—	—	—
RS-232/422/485	2	2	2	2
EXPANSION SLOT	M.2 E key 2230 x 1	M.2 E key 2230 x 1	M.2 E key 2230 x 1	M.2 E key 2230 x 1
POWER	9 ~ 36V	9 ~ 36V	9 ~ 36V	9 ~ 36V
POWER TEMP	0°C ~ 50°C	0°C ~ 50°C	0°C ~ 50°C	0°C ~ 50°C
OTHERS	Nano SIM	Nano SIM	Nano SIM	Nano SIM

Part Number	Description	QTY
968D4004GN	(TF)DDR4.4GB.DDR4 SODIMM.2666MT/s.512Mx8.SAMSUNG K4A4G085WX.260P.INNODISK.M4S0-4GSSNCIK-26	1
968D4008GW	(TF)DDR4.8GB.SODIMM.2666MT/s.260Pin.512Mx8 Samsung K4A4G085WX.InnoDisk.M4S0-8GSSOCIK-26	1
968C256G22	2.5″ SATA3 SSD.256GB,MLC.-10~80C.Transcend.TS256GSSD420K-AA	1
968C512G06	2.5″ SATA3 SSD.512GB,MLC.-10~80C.Transcend.TS512GSSD420K-AA	1
125530060Z	Power Adapter. 12V.5A.60W. FSP060-DHAN3	1
1255300960	Power Adapter. 12V.5A.96W. FSP096-DHAN3	1
1702031802	Power Cord (US)	1
1702031803	Power Cord (Europe)	1
170203180E	Power Cord (Japan)	1
GENESYS-WHU6-HDD1	HDD Kit. For GENESYS-WHU6	1
GENESYS-WHU6-WMT1	Wall Mount Kit. For GENESYS-WHU6	1
GENESYS-WHU6-VESA1	VESA Mount Kit. For GENESYS-WHU6	1
