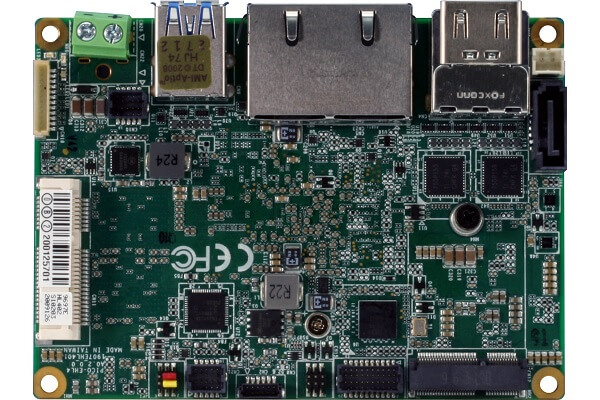

The PICO-EHL4 brings the latest Intel® Atom™, Celeron® and Penitum® processors (formerly Elkhart Lake) to the compact PICO-ITX form factor. The Intel® Atom™ x6000E series processors, Intel Pentium® and Celeron® N and J series processors (formerly Elkhart Lake) deliver greater computing performance over previous generations along with key technologies like in-band ECC to ensure data accuracy and integrity. The PICO-EHL4 takes advantage of the support for faster memory speeds and higher capacities by providing up to 16GB of LPDDR4x 4267MHz memory on-board.

The PICO-EHL4 provides a host of features allowing for flexibility to meet the needs of individual applications. Expansion slots include both M.2 2230, perfect for adding Wi-Fi or Bluetooth functionality; and full sized Mini-Card for expanded storage, AI accelerators, and more. The PICO-EHL4 can connect with a range of devices thanks to 4-bit GPIO as well as dual Gigabit Ethernet LAN ports, two USB3.2 and two USB2.0 ports, and two serial port headers (RS232/422/485). The PICO-EHL4 also features two HDMI 2.0 ports supporting 4K graphics at 60Hz, as well as on-board co-lay LVDS/eDP allowing the board to output up to three independent displays.
