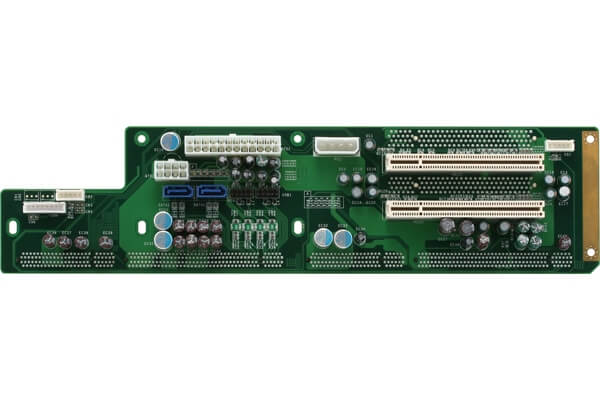

BP-206VH-P4

Rackmount, PICMG 1.3, 6-Slot Backplane, 4 PCI, Single Segment, PICMG Single Board Computers

Categories: Embedded Single Board Computers, PICMG Single Board Computers Tag: AAEON

Description

Description

Overview

Rackmount, PICMG 1.3, 6-Slot Backplane, PCI x 4, Single Segment

Features

Master: PICMG 1.3
PICMG 1.3 : 1
PCI : 4
System: Single
Fan Connector: 2
ATX Power Connector: 1
Dimension: 12.9″ x 3.5″ ( 327mm x 88mm)

Specifications [BP-206VH-P4]

MAIN
MASTER	PICMG 1.3
PICMG 1.3	1
PCI	4
PCI-E[X4]	–
PCI-E[X16]	–
ISA	–
FAN CONNECTOR	2
ATX POWER CONNECTOR	1
SYSTEM	Single
DIMENSION	12.9” x 3.5” (327mm x 88mm)

Ordering Information [BP-206VH-P4]

PART NUMBER	TF-BP-206VH-P4-A10
DESCRIPTION	Rackmount, PICMG 1.3, 6-Slot Backplane, 4 PCI, Single Segment, Rev. A1.0
