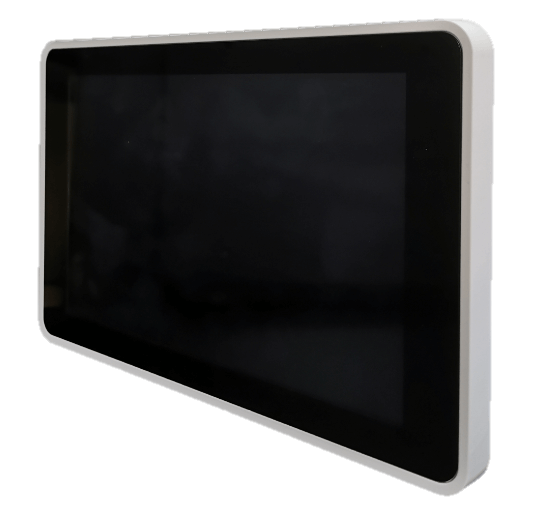

CCD-07W01

Features

Spec

System Information
Processor	Intel® Atom Z3735F Quad Core CPU 1.33 GHz, up to 1.8 GHz
System Memory	2GB DDR3L onboard

Storage
Storage	32GB eMMC onboard

I/O
Other	1 x 2.0M Camera built in, 1 x Microphone built in, 2 x 2W Speaker built in

Display
Graphic Chipset	Intel® Aton SoC integrated Graphics (Gen. 7), supports dual display
Spec. & Resolution	LCD: Max. resolution 1024×600 @ 60Hz, HDMI: Max. resolution 1920×1080 @ 60Hz

Certifications
Certification Information	CE/FCC Class B

Power Requirement
DC Input	+12V ~ +24V
DC Input Connector	DC Jack
Power Mode	AT mode
Adapter	Input: 100~240 Vac/50~60 Hz Output: 40W Adapter (19V @ 2.1A Adapter)

Mechanical & Environmental
Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
Weight	0.6kgs
System Fan	Fanless
Construction – Front	Plastic
Construction – Rear	Plastic
Dimension	191 x 124 x 30mm

Software Support
OS Information	Windows 10 32 bit, Android 64 bit, Linux 64 bit

Ordering Information

CCD-07W01-7V38C-1R
7″ 1024×600 PPC w/Atom Z3735 /Win10
LAN/2USB/HDMI/Line out/SPK/CAM/MIC

CCD-07W01-7V37C-1R
7″ 1024×600 PPC w/Atom Z3735/Linux
LAN/2USB/HDMI/Line out/SPK/CAM/MIC

CCD-07W01-7V39C-1R
7″ 1024×600 PPC w/Atom Z3735/Android 5.1
LAN/2USB/HDMI/Line out/SPK/CAM/MIC
