HID-2334

Description

Introduction

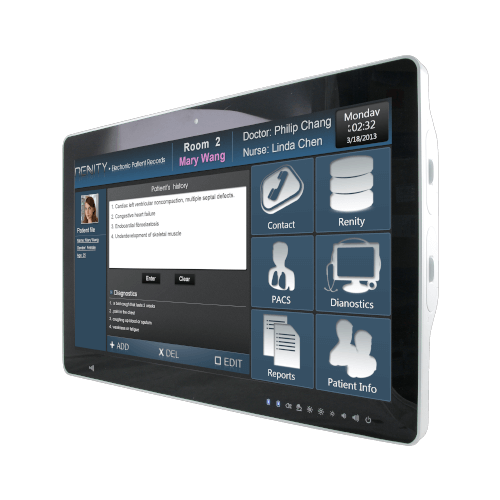

23.8” medical AIO PC HID-2334 our first to carry two hot swappable batteries for real mobility. The system takes advantage of Intel® Kaby Lake platform to provide a balance of performance and features. Especially designed for mobile carts, the HID-2334 is capable to help on daily tasks in healthcare institutions for the use of professional healthcare workers. With built in hot swappable batteries and four slots charging bay, there won’t be any hassle as before.

Features

23.8” Full HD PCAP Multi touch

7th Generation Intel® Core Kaby Lake i5 Processor

LED reading light bar

Optional Barcode Scanner

Optional Built-in Privacy Screen

Opitonal 2 x 6900mAh Hot swappable batteries

Optional 4 Slots Charging Bay

IP65 Front Panel Protection

Spec

System Information
Processor	7th Generation Intel® Core Kaby Lake i5-7300U Processor
Platform Controller Hub	integrated in Processor (SOC)
System Memory	2 x 260pin SODIMM socket up to 32GB Per Slot DDR4 2400 SDRAM
Watchdog Timer	H/W Reset, 1sec. ~ 65535sec. and 1sec./step
H/W Status Monitor	Monitoring System Temperature & Voltage
SBC	HID-2334 M/B + Charger Board
Battery	Optional Smart Battery Pack 14.4V 6900mAh, 99.4Wh

Expansion
Expansion	1 x M.2 2230 1 x mPCIe with SATA or PCIE x1 mSATA

Storage
Storage	1 x 2.5″ Drive Bay

Panel
LCD Size	23.8″
Display Type	Full HD
Resolution	1920 x 1080
Pixel pitch	274.5×274.5
Luminance	250 cd/m²
Contrast ratio	3000
Viewing angle	89(U), 89(D), 89(L), 89(R)
Response time	16ms
Backlight	LED
Touch Type	Projective Capacitive
Touch Controller	EETI EXC84H5680

I/O
USB Port	4 x USB 3.0
SATA	1 x SATA III
HDMI	1 x HDMI
Display Port	1 x DP

Data Collection
Camera	2.0M webcam
NFC	NFC RFID Module Built In

Wireless Communication
WLAN	Optional WiFi 1T1R 802.11b/g/n/ac/ BT4.0

Audio
Audio Codec	Realtek ALC888S
Speaker Output	2 x 2W

Certifications

Certification Information

CE :
IEC/EN60601-1-2

FCC :
Part 15 Class B

UL60601-1:
AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012,C1:2009/(R)2012 and A2:2010/(R)2012

CB:
IEC 60601-1/A1:2012 & EN 60601-1/A1:2013 (Ed 3.1)
EN 60601-1:2006+A11:2011+A1:2013+A12:2014

Ethernet
LAN Chipset	1 x Intel® I211AT, 1 x Intel® I219LM
Ethernet Interface	10/100/1000 Base-Tx GbE compatible
LAN Port	2 x RJ-45

Power Requirement
DC Input Connector	Lockable DC Jack
Power Mode	AT/ATX (ATX is default setting)
Adapter	Medical grade 120W/24V

Mechanical & Environmental
Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature	-30°C ~ 70°C (-22°F ~ 158°F)
Operating Humidity	0% ~ 90% Relative Humidity, Non-condensing
Dimension (W x L x H)	592 x 382 x 49.5mm
Weight	6.9 kg (without batteries and adapter)
Vibration Test	With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Test	With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms
IP Rating	Front IP65
Mounting Kit	VESA 75 x 75, 100 x 100
Power Mode	DC in +19V~24V
System Fan	Fanless
Construction – Front	White Plastic
Construction – Rear	White Plastic
Finishing	Anti-Microbial
Fanless	Yes
Color	White

Software Support
OS Information	Win10 64 bit/Linux

Ordering Information

HID-2334-730-A2R
HID 23.8 w/i5-7300U/8GB memory/LED/NFC/4USB3.0/SPK/24V medical adapter
Without: SSD/ Wifi/ Battery

Peripherals:
ACC-HID-WIFI-02R HID-2334 Wifi Kit
ACC-BAT-4S2P-01R Rechargeable Lithium Ion Battery,4S2P
RCC-HID-BATCHR-01R 4 Bay Charging Station w/120W Power Adapter
