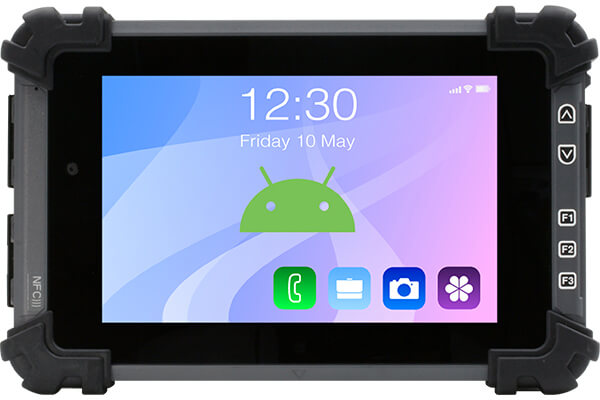

RTC-710RK

7” Rugged Tablet ARM-based Android™ with 1.6 GHz Quad Core Processor

Category: Tag:

Description

Overview

The RTC-710RK is designed to bring better performance, powered by the 6-core Rockchip RK3399 ARM processor, offering stable and efficient operation thanks to its RISC based construction. The RTC-710RK pairs this innovative processor with up to 4 GB of memory and up to 128 GB of storage to power a range of applications. The RTC-710RK utilizes the Android 8.1 (Oreo) operating system, which can be easily customized for a user’s specific needs.

The RTC-710RK is built to work where you need it, for as long as you need it. The RTC-710RK is built to the standard as all of AAEON’s rugged tablets, with MIL-STD-810G and IP65 certifications for vibration testing, drop testing, water and dust proofing. The RTC-710RK also boasts longer battery life thanks to a larger internal battery and hot-swappable battery pack that allows the rugged tablet to keep working without having to stop for a recharge. The RTC-710RK also features a high brightness screen (approx. 700 nits), as well as physical function keys which can be programmed by users.

Flexibility is a feature with the RTC-710RK, with a great standard I/O layout, which can be easily customized for the user’s applications. Users can also opt for add-on modules including a RJ45 and UART port module, or 2D barcode scanner. AAEON also offers a selection of ergonomic accessories to make all day use easier, including a hand strap, carry bag, and shoulder belt.

Features

  • 7″ WXGA (1280 x 800) 700-nit / 300-nit TFT LCD
  • Rockchip RK3399K Processor
  • Onboard LPDDR4 Memory, 2GB (Default) / 4GB
  • eMMC 16GB (Default) / 32GB
  • Projected Capacitive Multi-Touch Screen
  • WiFi 802.11b/g/n, Bluetooth 4.2, LTE (Optional)
  • 8MP Front and 8MP Rear Camera
  • UART Port + 10/100/1000 Base-T RJ45 via I/O Module (Optional)
  • USB 3.2 Gen 1 Type-C x 1, USB 2.0 Type-A x 1
  • 2D Barcode Scanner via I/O Module (Optional)
  • NFC (HF RFID) Reader (Optional)
  • Up to 3 GNSS, GPS + Galileo (Default), GLONASS, BeiDou (Optional)
  • One Hot-swappable Battery + Internal Battery, Up to 44W Battery Capacity
  • MIL-STD-810G, IP65 Compliant, Drop 122cm
  • Programmable Function Key: F1, F2, F3, Volume Up/Down, With LED Illumination
  • Android 8.1

Specifications [RTC-710RK]

SYSTEM
PROCESSOR Rockchip RK3399K Processor (Quad-Core A53 1.6GHz & Dual-Core A72 2.0GHz)
OPERATING SYSTEM Android 8.1
MEMORY Onboard LPDDR4 2GB (Default) / 4GB
STORAGE eMMC 16GB (Default) / 32GB
DISPLAY 7″ WXGA (1280×800) 700-nit / 300-nit TFT LCD
I/O PORT SIM card slot x 1, USB 3.2 Gen 1 Type-C x 1, Audio jack x 1 (3.5mm), DC-in jack x 1, Micro-SD card slot x 1, USB 2.0 Type-A x 1, UART Port x 1 (Via I/O Module), 10/100/1000 Base-T RJ45 x 1 (Via I/O Module)
COMMUNICATION Wi-Fi 802.11 b/g/n, Bluetooth v4.2 (EDR + BLE)
NAVIGATION Up to 3 GNSS, GPS + Galileo (Default), GLONASS, BeiDou (Optional) External Antenna
WWAN (OPTIONAL) LTE via M.2 slot (Optional)
CAMERA 8MP front camera, 8MP rear camera with flash
SENSOR G-sensor, Gyroscope, Light-sensor
EXPANSION SLOT M.2 slot x 1, Docking connector: USB 3.2 Gen 1 x 1
BARCODE SCANNER (OPTIONAL) 2D Barcode scanner, OPTICON MDI-4100-USB via I/O module (Optional)
HF RFID (OPTIONAL) ISO 15693 (R/W)
ISO 18092 (R/W)
ISO 14443-A (R/W)
ISO 14443-B (Only Read UID)
Depend on card type
PHYSICAL KEY F1(Audio on/off), F2 (Screenprint), F3 (Barcode Scanner Trigger), Volume Up, Volume Down
MECHANICAL
COLOR Dark Grey
DIMENSIONS (W X H X D) 8.65″ x 5.46″ x 0.94″ (219.8 x 138.8 x 23.9mm)
GROSS WEIGHT 1.52 lb (0.69 Kg) based on configurations
ENVIRONMENTAL
OPERATING TEMPERATURE -20°C ~ 60°C (-4°F ~ 140°F) for high-brightness version
STORAGE TEMPERATURE -55°C ~ 70°C (-67°F ~ 158°F)
HUMIDITY 0% ~ 90% relative humidity, non-condensing
ENVIRONMENTAL SEALING IP65
VIBRATION MIL-STD-810G
DROP MIL-STD-810G Method 516.6 Procedure IV
Height of Drop: 122cm (48 inch; 4ft)
SHOCK MIL-STD-810G
ESD Air charge: +/- 8KV, Contact charge: +/- 4KV
CERTIFICATIONS AND STANDARDS UL62368-1, CE, FCC
POWER SUPPLY
AC/DC ADAPTER AC 100 ~ 240 V, 50 ~ 60 Hz, Output: 12V/ 3.34A/ 40W
BATTERY LIFE Li-ion Battery 8-hour battery life based on test configurations
MASTER BATTERY 7.4V, 4420mAh, 32.7W
SLAVE BATTERY Hot-swappable battery: 7.4V, 1530mAh, 11.3W (Optional)
DISPLAY
LCD 7” TFT-LCD Display
RESOLUTION 1280 x 800
MAX. COLORS 16.7M
DOT SIZE 0.03925(H) X 0.11775(V) mm
BRIGHTNESS 700 / 300 nits
VIEWING ANGLE Horizontal: 178°, Vertical: 178° (Typical)
TOUCH SCREEN
TOUCHSCREEN TYPE 7″ Projected Capacitive Multi-Touch Screen
(700 nits with 10 points / 300 nits with 5 points)
LIGHT TRANSMISSION Min. 85%

Ordering Information [RTC-710RK]

PART NUMBER RTC-710RK-RH0001 RTC-710RK-RH0002 RTC-710RK-RH0003 RTC-710RK-RH0004
CPU RK3399K RK3399K RK3399K RK3399K
OS Android 8.1 Android 8.1 Android 8.1 Android 8.1
LCD DISPLAY 7″ 700 nits 7″ 700 nits 7″ 700 nits 7″ 700 nits
TOUCH SCREEN PCT 10 points PCT 10 points PCT 10 points PCT 10 points
SYSTEM MEMORY LPDDR4 2GB LPDDR4 2GB LPDDR4 2GB LPDDR4 2GB
STORAGE eMMC 16GB e MMC16GB eMMC 16GB eMMC 16GB
EXPANSION I/O SIM card slot x 1, USB 3.2 Gen 1 Type-C x 1, Audio jack x 1 (3.5mm), DC-in jack x 1, Micro-SD card slot x 1, USB 2.0 Type-A x 1 SIM card slot x 1, USB 3.2 Gen 1 Type-C x 1, Audio jack x 1 (3.5mm), DC-in jack x 1, Micro-SD card slot x 1, USB 2.0 Type-A x 1 SIM card slot x 1, USB 3.2 Gen 1 Type-C x 1, Audio jack x 1 (3.5mm), DC-in jack x 1, Micro-SD card slot x 1, USB 2.0 Type-A x 1, UART Port x 1 (Via I/O Module), 10/100/1000 Base-T RJ45 x 1 (Via I/O Module) SIM card slot x 1, USB 3.2 Gen 1 Type-C x 1, Audio jack x 1 (3.5mm), DC-in jack x 1, Micro-SD card slot x 1, USB 2.0 Type-A x 1, 2D BCR x 1 (Via I/O Module)
SENSOR G-sensor
Gyro-sensor
Light-sensor		 G-sensor
Gyro-sensor
Light-sensor		 G-sensor
Gyro-sensor
Light-sensor		 G-sensor
Gyro-sensor
Light-sensor
WIFI/BLUETOOTH 802.11 b/g/n + BT4.2 802.11 b/g/n + BT4.2 802.11 b/g/n + BT4.2 802.11 b/g/n + BT4.2
NAVIGATION — GPS / Galileo / GLONASS GPS / Galileo / GLONASS GPS / Galileo / GLONASS
LTE BANDS (MHZ) — — — —
DOCKING — Yes Yes Yes
CAMERA Front: 8MP Front: 8MP
Rear: 8MP w/ Flash		 Front: 8MP
Rear: 8MP w/ Flash		 Front: 8MP
Rear: 8MP w/ Flash
2D BARCODE SCANNER — — — Yes
HF RFID — Yes Yes Yes
BATTERY 32.7W (internal) 32.7W +11.3W 32.7W +11.3W 32.7W +11.3W
POWER DC12V DC12V DC12V DC12V

Downloads [RTC-710RK]

Packing List

  • Power Adapter (1255X00008)
  • RTC-710RK

*Power cord must be purchased separately.

Optional Accessories

RDS-0710-000 Docking Station
RDS-0710-001 Docking Station, W/ Stand
RTC-710-BAG-000 Carry Bag
964171RKB0 Hand Strap
RDS-0040-0000 4-Bay Battery Charger
9741600R04 Battery Pack, 7.4V, 1530mAh, 2pcs/Box
1259X00003 Car Adapter, Cigarette Plug
1702031802 Power Cord for USA
1702031803 Power Cord for Europe
